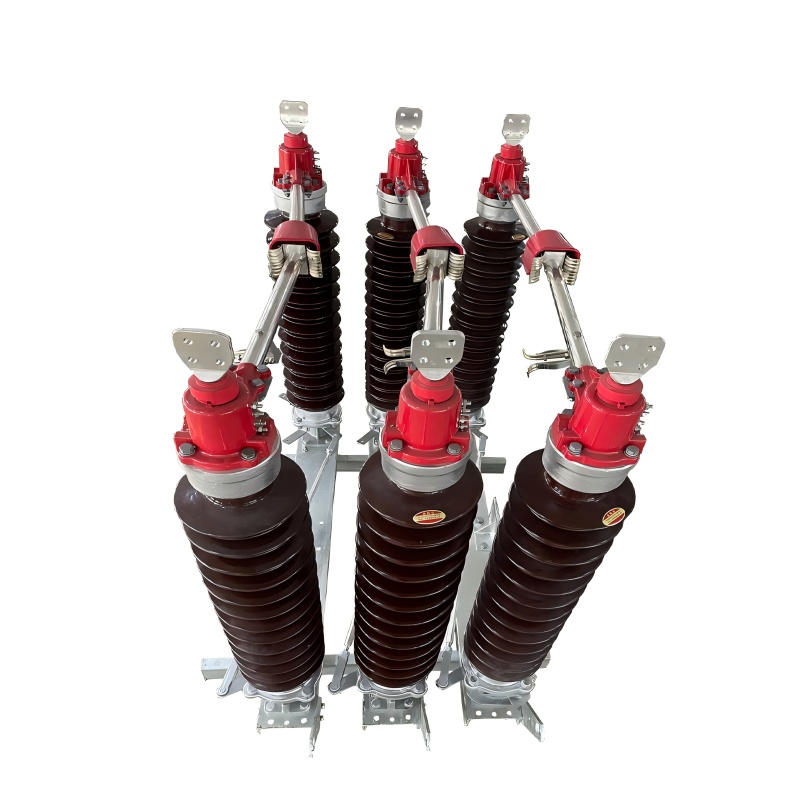

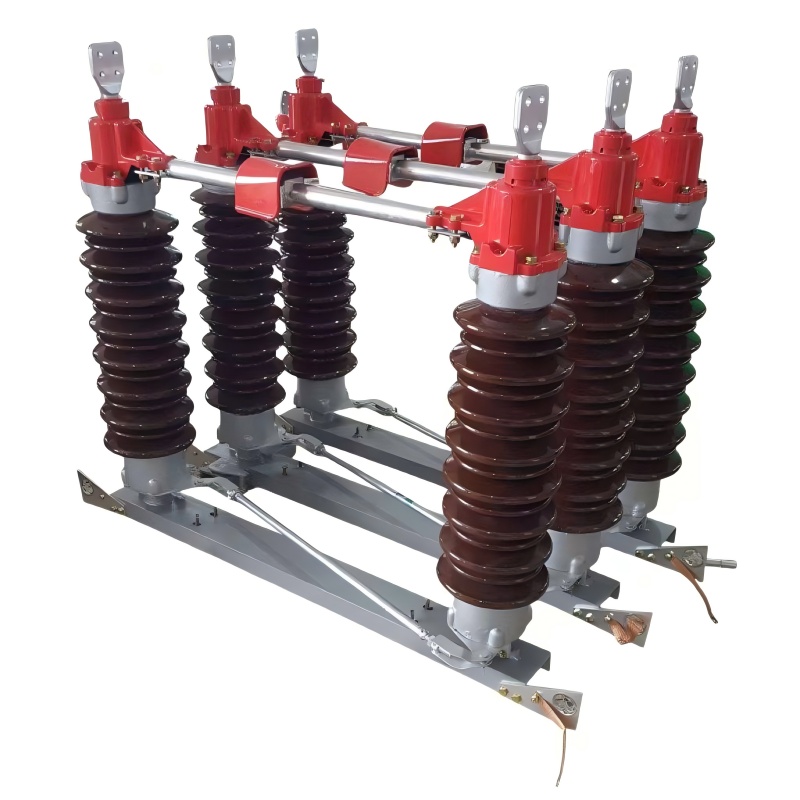

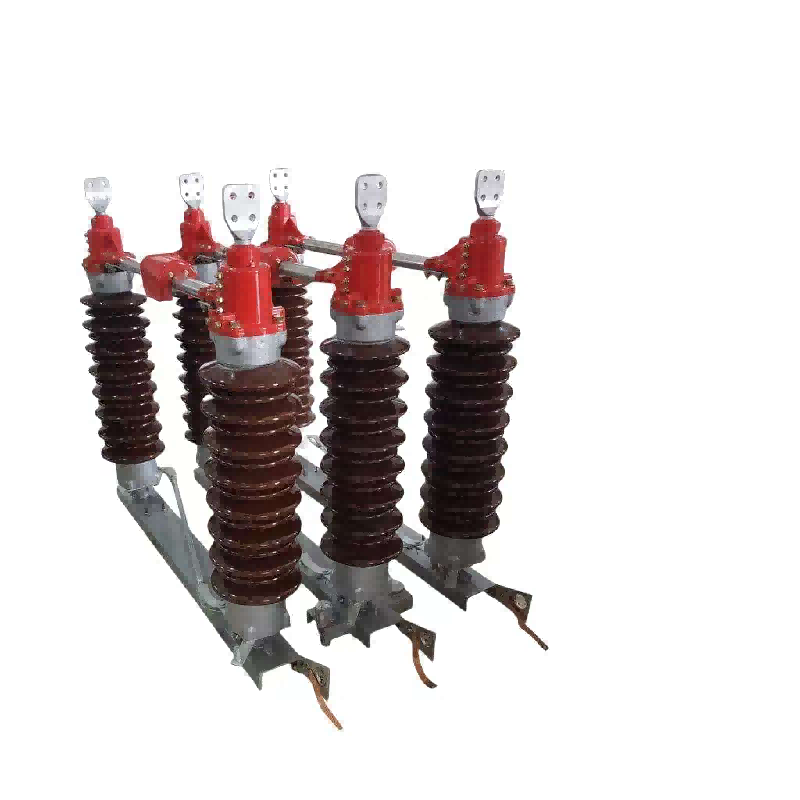

Lugao's GW4 Series 110kV/150kV Outdoor High Voltage Electric Disconnector Switch features a two-column horizontal rotary structure, enabling opening and closing operations through horizontal rotation. Operators can easily master the switch without complex procedures. Available with either electric or manual operation, it comes in three different configurations: non-grounded, single-grounded, and double-grounded. It can be integrated with a static-contact grounding switch for enhanced safety. It is ideal for outdoor use and can operate even in inclement weather. Braided copper wire connects the terminals to the aluminum alloy components, providing excellent oxidation resistance.

The GW4 Series is available in a variety of voltages. Please contact Lugao for the appropriate configuration for your specific application.

Operating Environment

1. Ambient temperature: -30°C-+40°C;

2. Altitude: no more than 2000m (products with special requirements can be provided);

3. Wind speed: no more than 34m/s;

4. The installation site should be free of flammable substances, explosion hazards, chemical corrosion and severe vibration;

5. The pollution level of the pillar insulator: the common type is level 0, and the anti-pollution type is level II.

Technical Parameters

Factory Shoot

Packaging
