Liugao is a professional China High Voltage Circuit Breaker manufacturers and China Low voltage equipments suppliers.We manufacture high-quality power transformers, transformers, switchgear, circuit breakers, isolation switches, and box substations.Committed to excellence, Liugao ensures top-tier reliability and efficiency in all our products.Choose Liugao for cutting-edge technology and trusted solutions in the realm of electrical power systems.

A high voltage circuit breaker is a critical component in an electrical power system designed to interrupt or break the flow of electrical current in high voltage circuits.   It plays a crucial role in protecting the power system and connected equipment from overcurrents, short circuits, and other electrical faults.

High voltage circuit breakers operate at voltage levels typically above 1,000 volts AC. The voltage range can include medium voltage (1,000 V to 38 kV) and high voltage (above 38 kV).

High voltage circuit breakers are designed to handle and interrupt high levels of electrical current.   They must have the capacity to interrupt fault currents to protect the system from damage.

Use air as the interrupting medium and are suitable for lower voltage levels.

Use oil as the interrupting medium and are commonly used for high voltage applications.

Use a vacuum as the interrupting medium, providing efficient and reliable interruption of current.

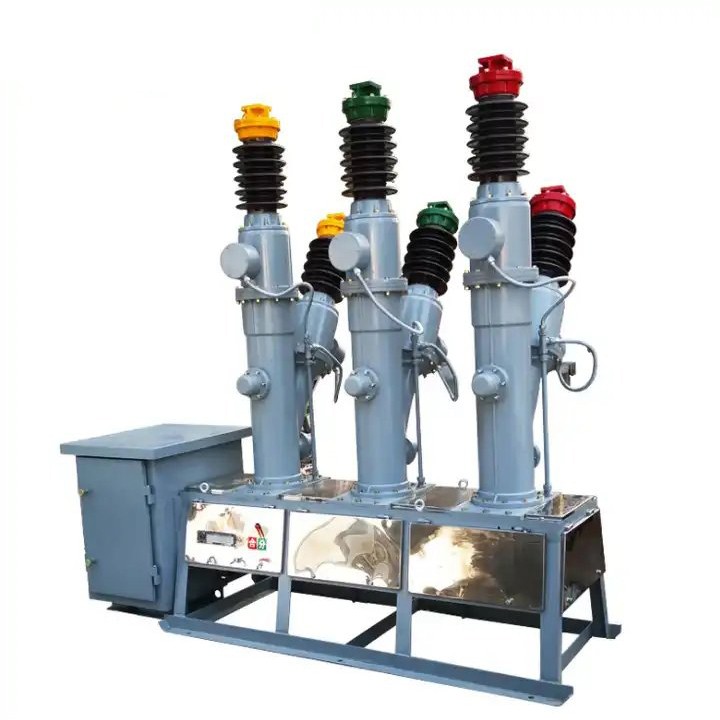

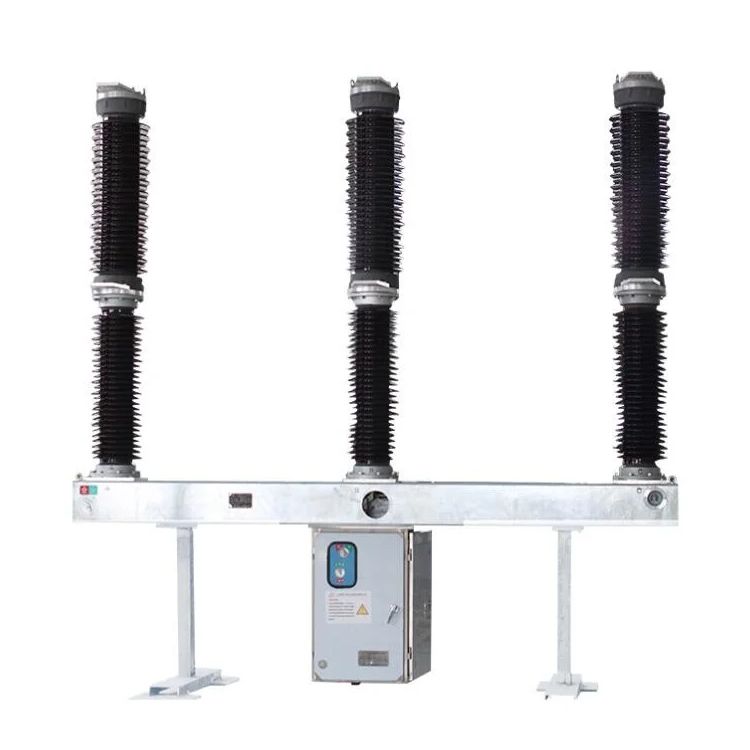

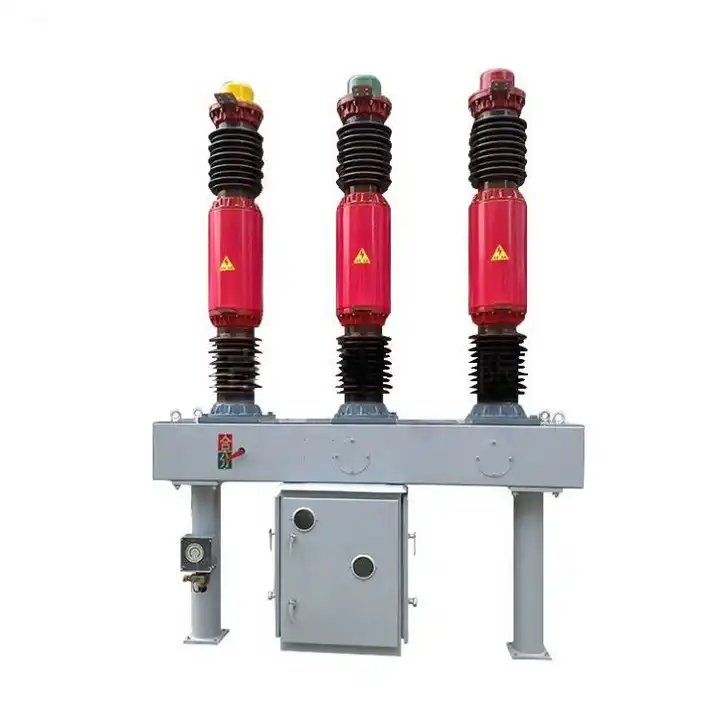

SF6 Circuit Breakers: Use sulfur hexafluoride (SF6) gas as the interrupting and insulating medium, suitable for high voltage applications. High voltage circuit breakers are primarily designed to interrupt the flow of current under fault conditions such as short circuits and overloads. They facilitate the opening and closing of circuits for normal switching operations, maintenance, and repairs.

High voltage circuit breakers consist of fixed and moving contacts that can be opened or closed under the control of an operating mechanism.   The interrupting medium (air, oil, vacuum, or SF6) is used to quench the arc that forms when the contacts separate.

High voltage circuit breakers are commonly installed in power substations to protect the power grid and equipment.

Transmission Lines: They are used to control and protect high voltage transmission lines.

High voltage circuit breakers are employed in large industrial facilities to protect electrical equipment.

Utility companies use high voltage circuit breakers to ensure the reliability and stability of the electrical grid.

High voltage circuit breakers are critical for maintaining the integrity and safety of electrical power systems, ensuring the timely interruption of faults to prevent damage to equipment and maintain the overall reliability of the power supply.
