10KV Oil Immersed Power Distribution Transformer

LuGao is a professional sales 10KV Oil Immersed Power Distribution Transformer manufacturers. Our unwavering dedication to excellence is evident in the delivery of high-quality products, customized to meet diverse requirements. Opt for Liu Gao for dependable solutions and profound expertise in the dynamic power industry.

Send Inquiry

Product Description

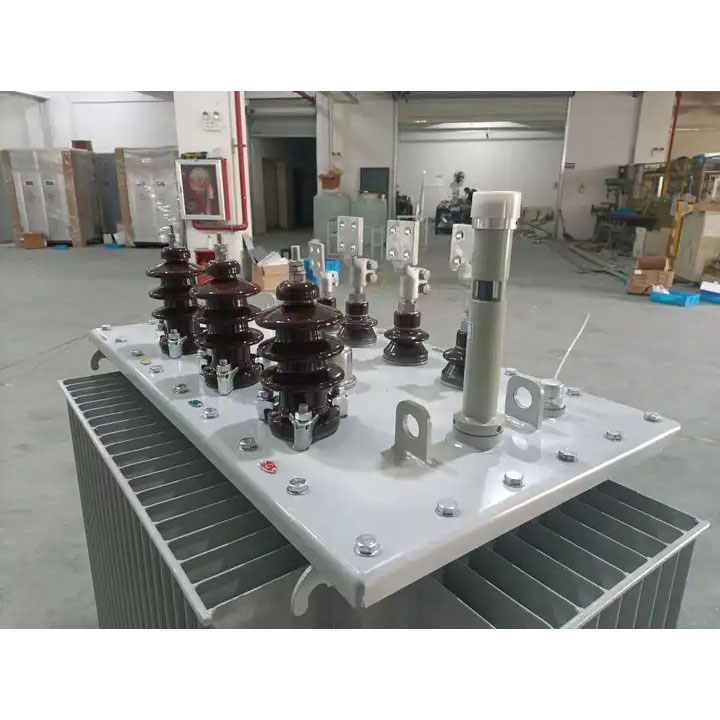

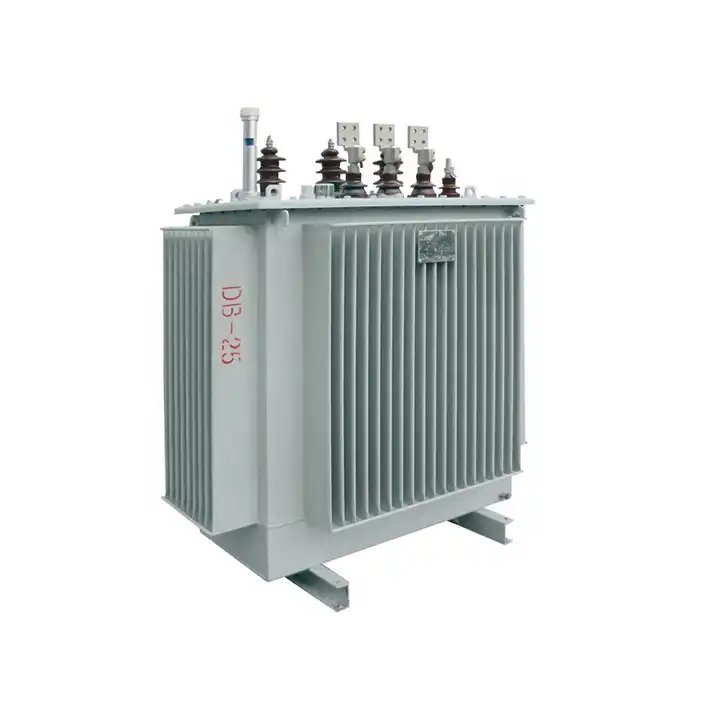

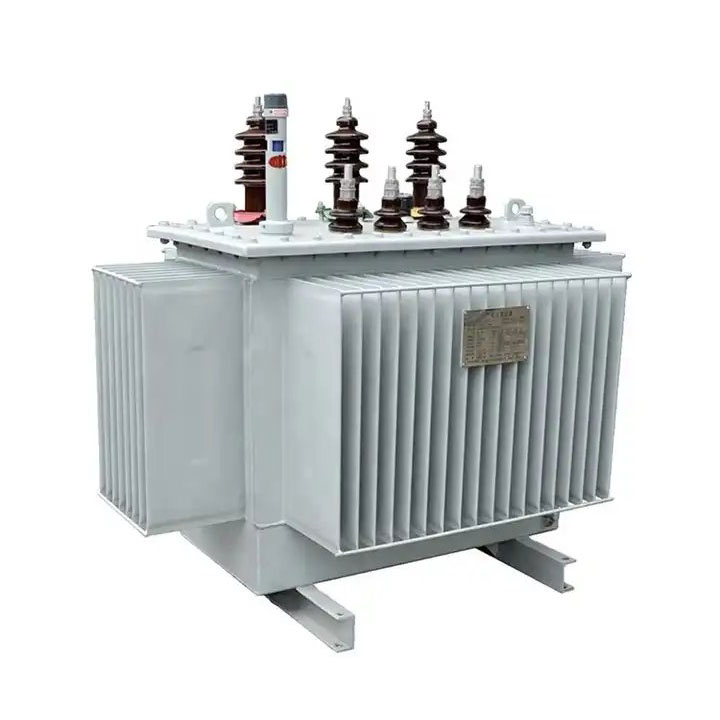

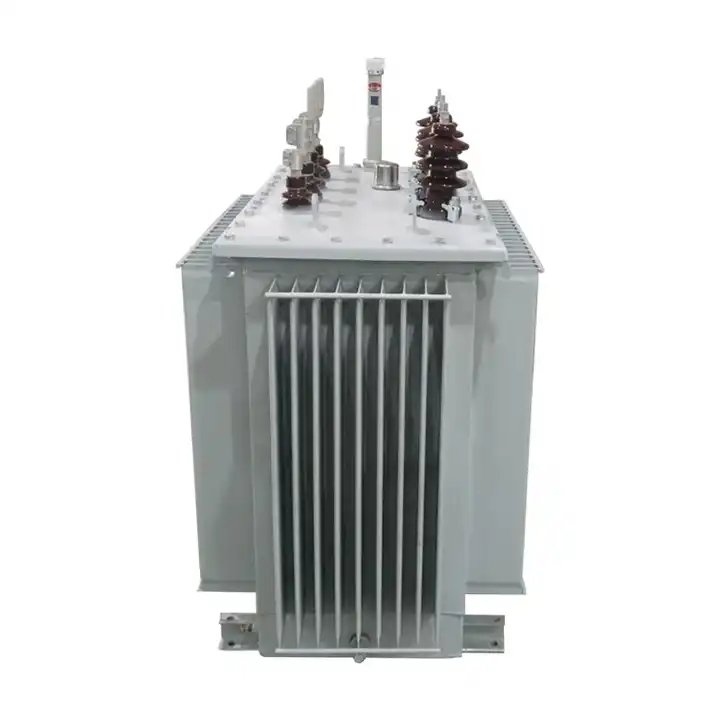

Lu Gao is a 10KV Oil Immersed Power Distribution Transformer Suppliers, our oil immersed transformers conform to Standards IEC. Its core is made of quality cold-rolled silicon sheet and is of a full-miter non-puncture structure and its coil is made of quality

oxygen-free copper.It adopts radiator oil tank of corrugated shteet type or expansion type.

As it doesn't need oil conservator, the height of oil-immersed transformer is reduced, and as the transformer oil doesn't contract with air, the oil ageing is retarded, thus prolonging the service life of oil-immersed transformer.

This product is widely used in urban power grid reconstruction, residential district, factory, high-rise building, mining factory, hotel, shopping mall, airport, railway, oil field, wharf, highway and other outdoor places.

10KV Oil Immersed Power Distribution Transformer Operating Environment

1. Highest ambient temperature: +40℃

2. Lowest ambient temperature: -25℃

3. Elevation: below 1000 meters

4. Highest monthly average relative humidity: 90% (at 20℃)

5. Installation location: suitable for installation in areas free from fire or explosion hazards, significant pollution, chemical corrosion, or excessive vibration, whether indoors or outdoors.

10KV Oil Immersed Power Distribution Transformer Characteristics

1. The oil-immersed transformer exhibits good heat emission and a substantial overload capacity. It can operate without a wind machine for an extended period at 130% overload, maintaining full load without compulsory wind cooling under IP45 conditions.

2. The oil-immersed transformer ensures perfect safety and resistance to fire, capable of withstanding combustion for a prolonged period at 800ºC without emitting smoke.

3. With strong resistance to thermal shock, the oil-immersed transformer can be loaded immediately at -50ºC.

4. The oil-immersed transformer features complete waterproofing and airproofing to enhance its durability.

5. Ensuring no partial discharge, the oil-immersed transformer maintains a high level of operational integrity.

6. With good hydrophobicity and resistance to alkaline cauterization and fundamental influence, the oil-immersed transformer proves to be reliable in diverse environmental conditions.

7. The oil-immersed transformer is environmentally friendly, producing low noise, no deleterious gases, and is easy to decompose.

10KV Oil Immersed Power Distribution Transformer Specification

Technical Data of 10kV S11, S11-M Series Distribution Transformer
Rated Capacity	Voltage Group(kV)		Connection Method	Loss (kW)		No-load current	Impedance Voltage	Weight (kg)			(mm)			Gauge
											(mm)			Gauge
											(L)	(W)	(H)
(kVA)	HV	LV		No-load	Load	%	%	Machine	Oil	Gross	Dimension			Vertical	Horizontal
10				0.065	0.4	3.5		90	55	220	650	450	880	400	350
20				0.08	0.52	3		140	60	270	720	490	950	400	350
30				0.1	0.63/0.6	2.3		185	70	330	750	490	970	450	340
50				0.13	0.91/0.87	2		260	80	430	770	550	1030	450	380
63				0.15	1.09/1.04	1.9		260	85	440	800	600	1040	450	380
80				0.18	1.31/1.25	1.9		320	95	520	790	600	1070	450	430
100				0.2	1.58/1.5	1.8		355	100	570	830	640	1050	550	450
125	11			0.24	1.89/1.8	1.7		425	115	675	1070	700	1150	550	470
160	10.5			0.28	2.31/2.2	1.6		510	130	790	1120	700	1220	550	520
200	10	0.4	Yyn0	0.34	2.73/2.6	1.5		550	145	850	1080	690	1160	550	520
250	6	0.69	Dyn11	0.4	3.2/3.05	1.4		630	165	985	1160	740	1190	650	550
315	6.3			0.48	3.83/3.65	1.4		755	190	1155	1230	800	1240	650	550
400				0.57	4.52/4.3	1.3		910	225	1405	1310	860	1250	650	550
500				0.68	5.41/5.15	1.2		1050	240	1600	1370	890	1350	750	600
630				0.81	6.2	1.1	4.5	1250	310	1945	1580	1060	1310	850	660
800				0.96	7.5	1		1540	365	2350	1640	1060	1500	850	660
1000				1.15	10.3	1		1690	405	2645	1720	1160	1540	850	660
1250				1.36	12	0.9		1965	560	3230	1790	1160	1740	850	660
1600				1.64	14.5	0.8		2355	650	3805	1830	1190	1850	850	700
2000				1.96	19.8	0.8		2570	615	4245	2190	1900	1950	820	820
2500				2.31	23	0.7		3130	810	5280	2180	1940	2250	1070	1070
